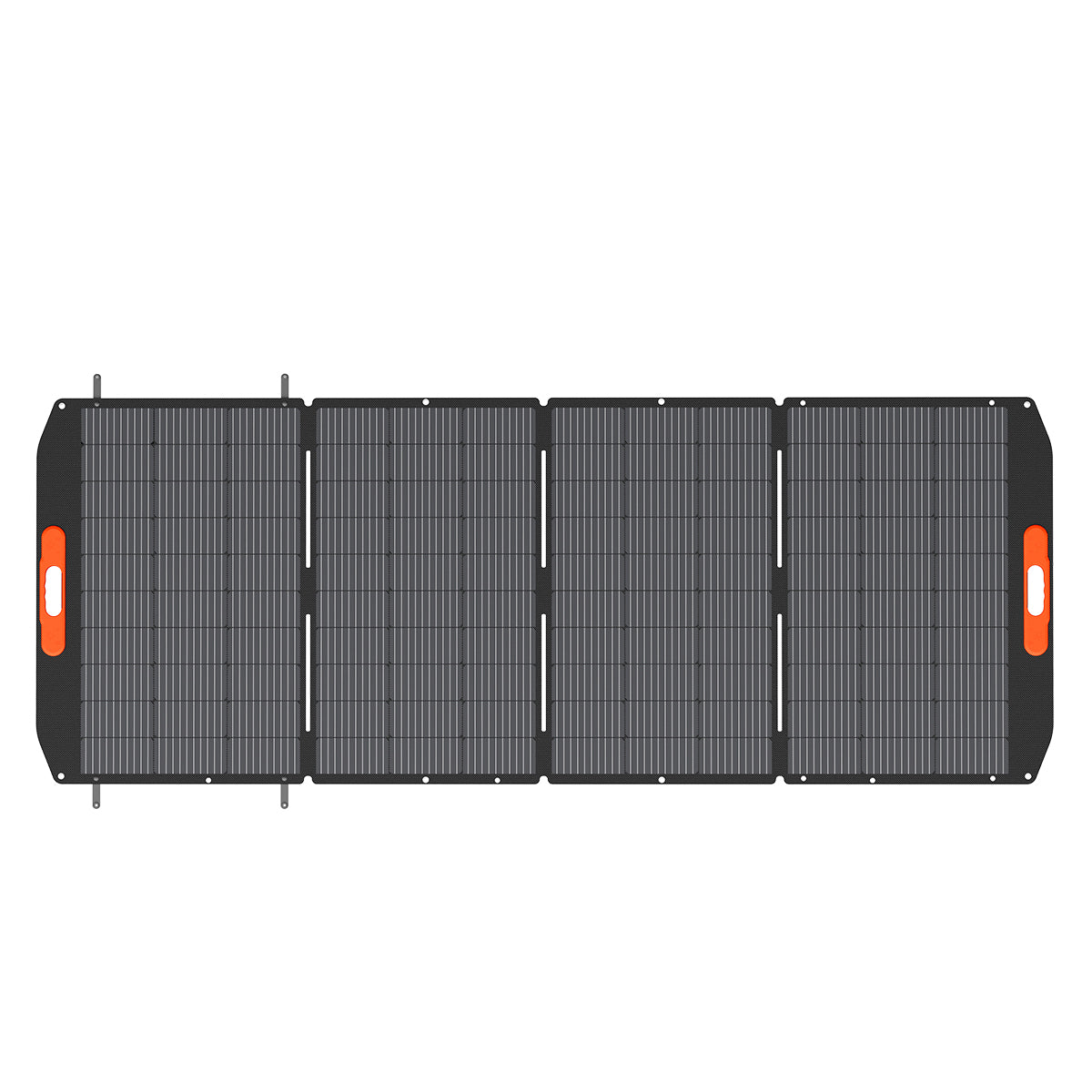

OSCAL PM400 Plus 400W Foldable Solar Panel for PowerMax 6000, 3600 & 2400

The OSCAL PM400 Plus is a high-efficiency foldable solar panel designed for seamless compatibility with OSCAL PowerMax portable power stations. Built with monocrystalline cells, MC4 connectors, and a durable IP67-rated construction, it delivers reliable solar charging for RV travel, camping, and off-grid power needs. Its portable briefcase-style foldable design makes setup, transport, and storage simple.

Key Features:

• 400W high-output solar charging for PowerMax systems
• Foldable portable design for easy transport and storage
• Monocrystalline cells with high efficiency up to 22.7%
• MC4 connectors for plug-and-play compatibility
• IP67 waterproof and dustproof construction
• Slim unfolded profile for strong sun capture
• Durable build for outdoor, RV, and camping use

Specifications:

• Product Name: OSCAL PM400 Plus Foldable Solar Panel
• Rated Power: 400W
• Cell Type: Monocrystalline Silicon
• Cell Size: 182 × 91 mm
• Maximum Power Voltage (Vmp): 34.2V
• Maximum Power Current (Imp): 11.7A
• Open Circuit Voltage (Voc): 41V
• Short Circuit Current (Isc): 12.3A
• Cell Efficiency: ≥22.7%
• Operating Temperature: -10°C to +70°C
• Waterproof Rating: IP67
• Unfolded Dimensions: 980 × 2545 × 5 mm
• Folded Dimensions: 980 × 683 × 55 mm
• Weight: 18–22 kg
• Connector Type: MC4
• Warranty: 5 Years
• Compatibility: OSCAL PowerMax 6000, 3600, 2400
